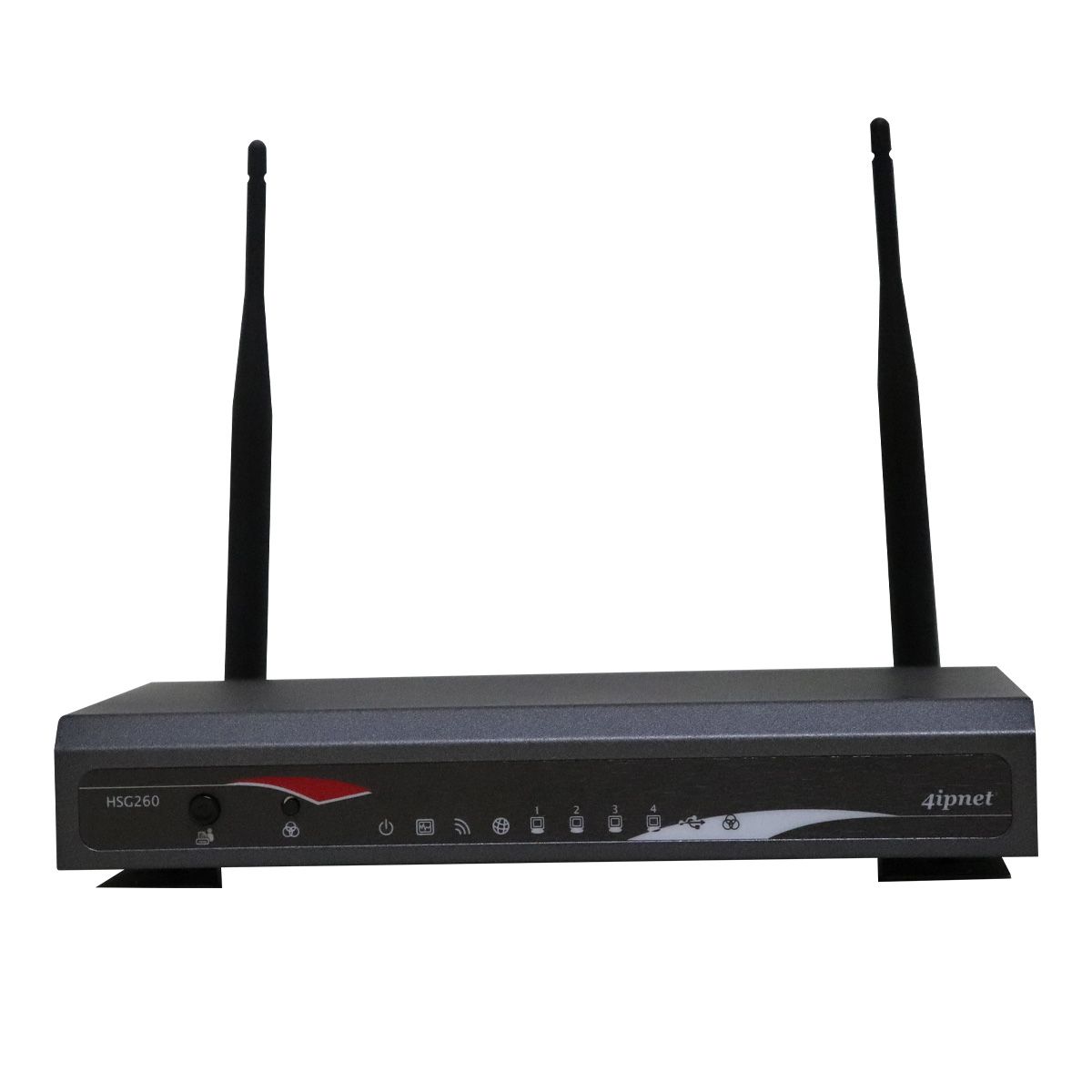

4IPNET HSG260 (Wireless Hotspot Gateway)

4IPNET HSG260 (Wireless Hotspot Gateway)

15,300.00 Php 15300.0 PHP

15,300.00 Php

Add to Cart

        The 4ipnet HSG260 is the most economical and feature-rich Wireless Hotspot Gateway. An access point with built-in controller functionality, the HSG260 is ideal for small-sized organizations and establishments that wish to have an enterprise-grade WLAN without the associated costs and complexity. The HSG260 features 2x2 MIMO radio that can support up to 300 Mbps data rate in the 2.4 GHz band, providing high performance. Along with integrated user authentication, role-based policy assignment, and real-time user monitoring, businesses of all scales can now own a manageable and secure wireless network.

Odoo image and text block


1.          802.11b/g/n, 2x2 MIMO, up to 300Mbps

2.          Re-cycling 2000 on-demand/500 local accounts

3.          Designable 10 billable hotspot packages with policy

4.          1 WAN + 4 LAN gigabit ports

5.          Customizable login page for advertisement

6.          UAM (captive portal) easy login process

7.          User bandwidth control

8.          Complete operation report

9.          Layer-2 firewall protection

10.      Built-in DHCP, NAT


· Feature-rich Wireless Hotspot Gateway

· For small professional offices, small shops, public services area.

· Customized Captive Portal with Social Media login and On-Demand Account.

· HSG260 integrates with the Wireless Easy Setup

· Wall-mountable, dust-proof (IP50) metal housing

· Multiple Billing Plans and SMS Payment Gateway Interfaces

· Billing Quota by Volume Traffic, Time, and Duration.

· Real-time email notification and browser-based Authentication

· Flexible Role-based User Policies

· User Bandwidth Control, Firewall, and Routing

· MAC/IP Privilege Lists and Blacklists

· User Session Control, Limits and Traffic Statistics.

· Detailed logging and reporting Logs

· Single Management UI for Wi-Fi Parameters & User Access Control

· Fixed Local Accounts for Staff and Employees

· Simple Integration to Keypad-based Ticket Printer

· Alternative Smartphone/Tablet Account Creation

· Built-in Network Troubleshooting Utilities




DC Input: 5V / 2A (Power adapter included)

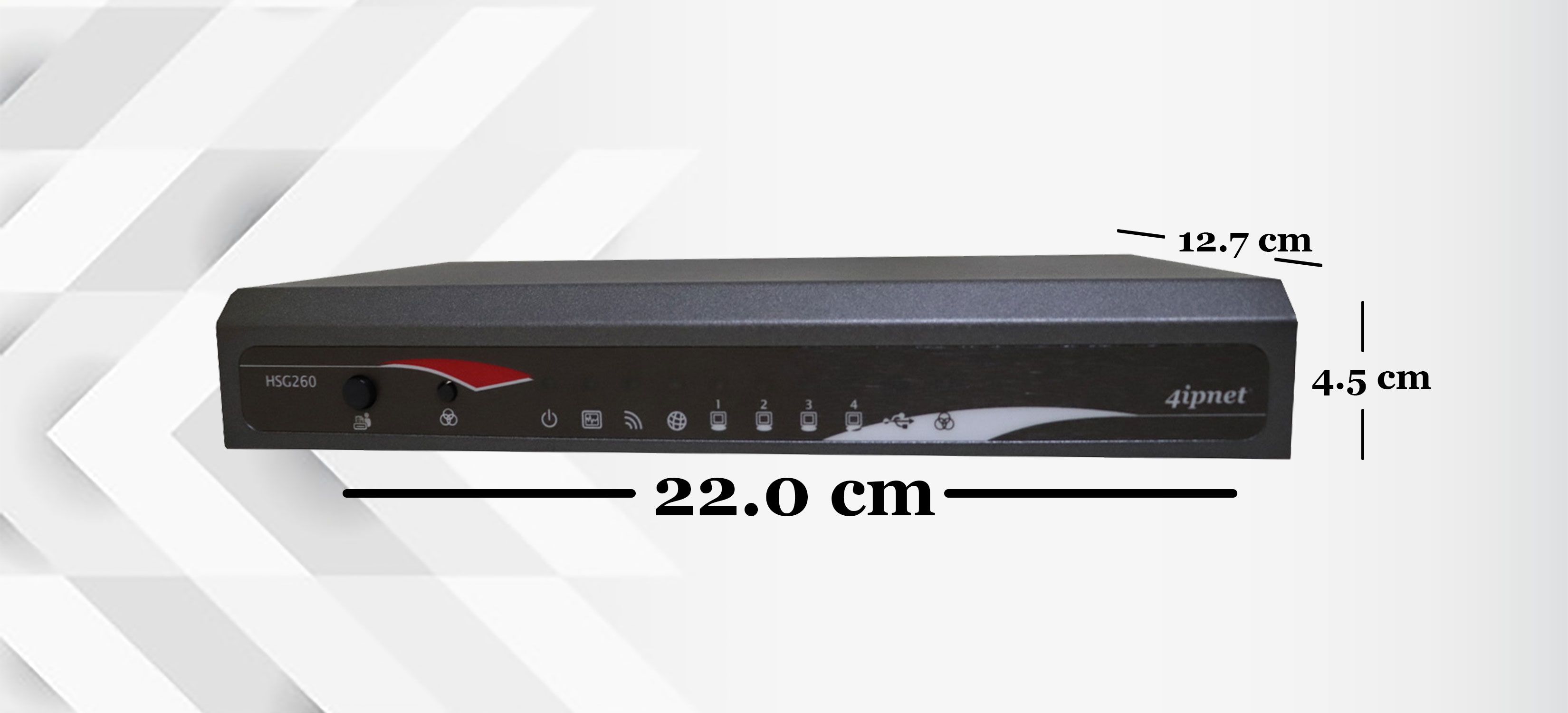

22.0 cm (L) x 12.7 cm (W) x 4.5 cm (H)


0.82 kg (1.8 lbs)

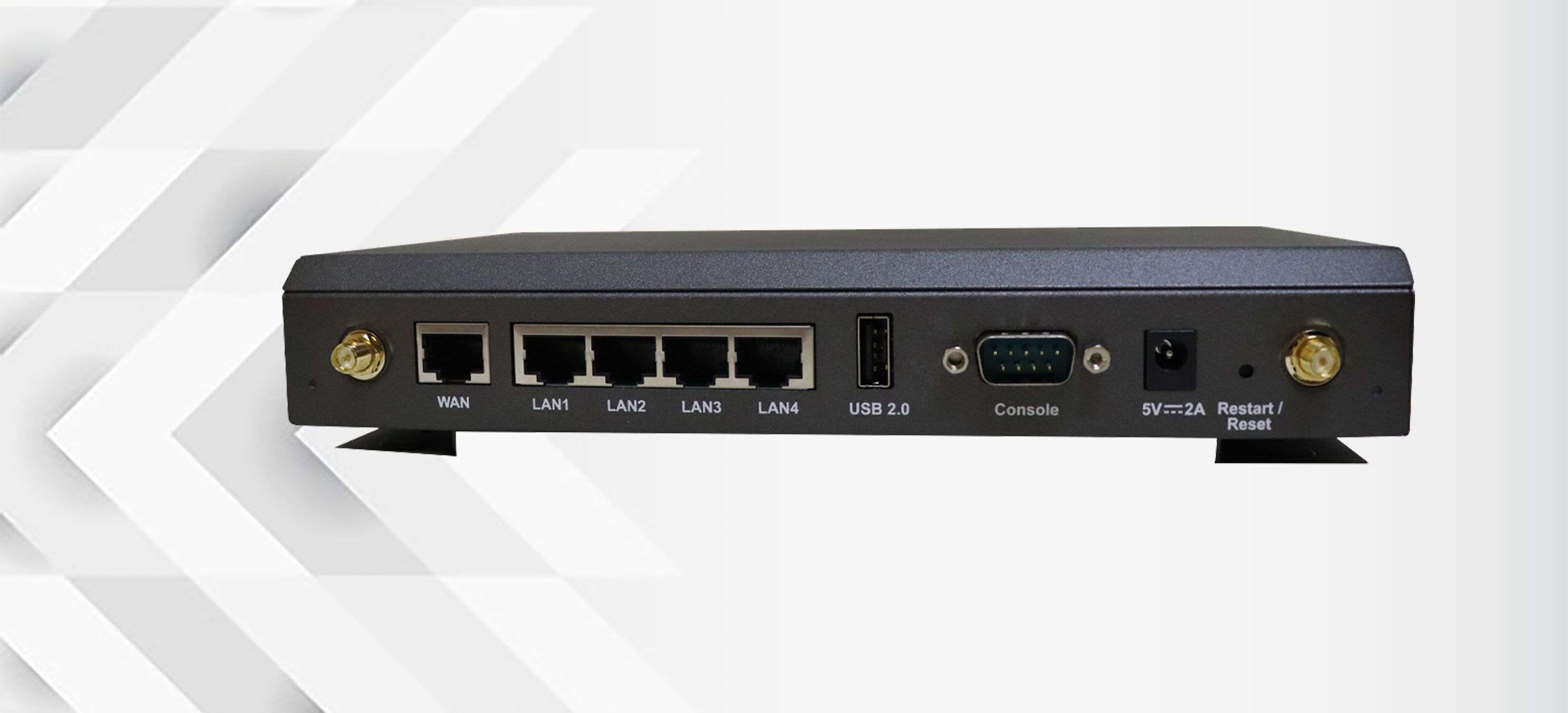

Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45

LAN: 4 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45

Console: 1 x DB9M


Type: 2 x External single-band 2.4 GHz omnidirectional (included)

Gain: 5 dBi (2.4 GHz)



802.11 b/g/n

Single-band 2.4 GHz

Supported Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 – 144.4 Mbps (20 MHz), 13.5 – 300 Mbps (40 MHz)

Radio Chains

2 x 2

Spatial Streams


Output Power

 2.4 GHz: Up to 17 dBm


 20 MHz

 40 MHz

Frequency Band

2.412 – 2.472 GHz

Operating Channels

2.4 GHz: 1 – 11 (US), 1 – 13 (Europe), 1 – 13 (Japan)


Up to 4


FCC (United States), CE (Europe)

RoHS compliant


Physical Data Rate

Up to 300 Mbps

Local Accounts

 Up to 500

On-Demand Accounts

Up to 2,000


Browser-Based Configuration

Administer the system from any standard web browser

Administrator Accounts

Multiple tiered access privileges

Monitor each admin’s current accessed page

System Time

Automatic synchronization (NTP) , Manually configured

System Backup & Restore



Yes; v1/v2c

Network Utilities

Yes; built-in packet capture
