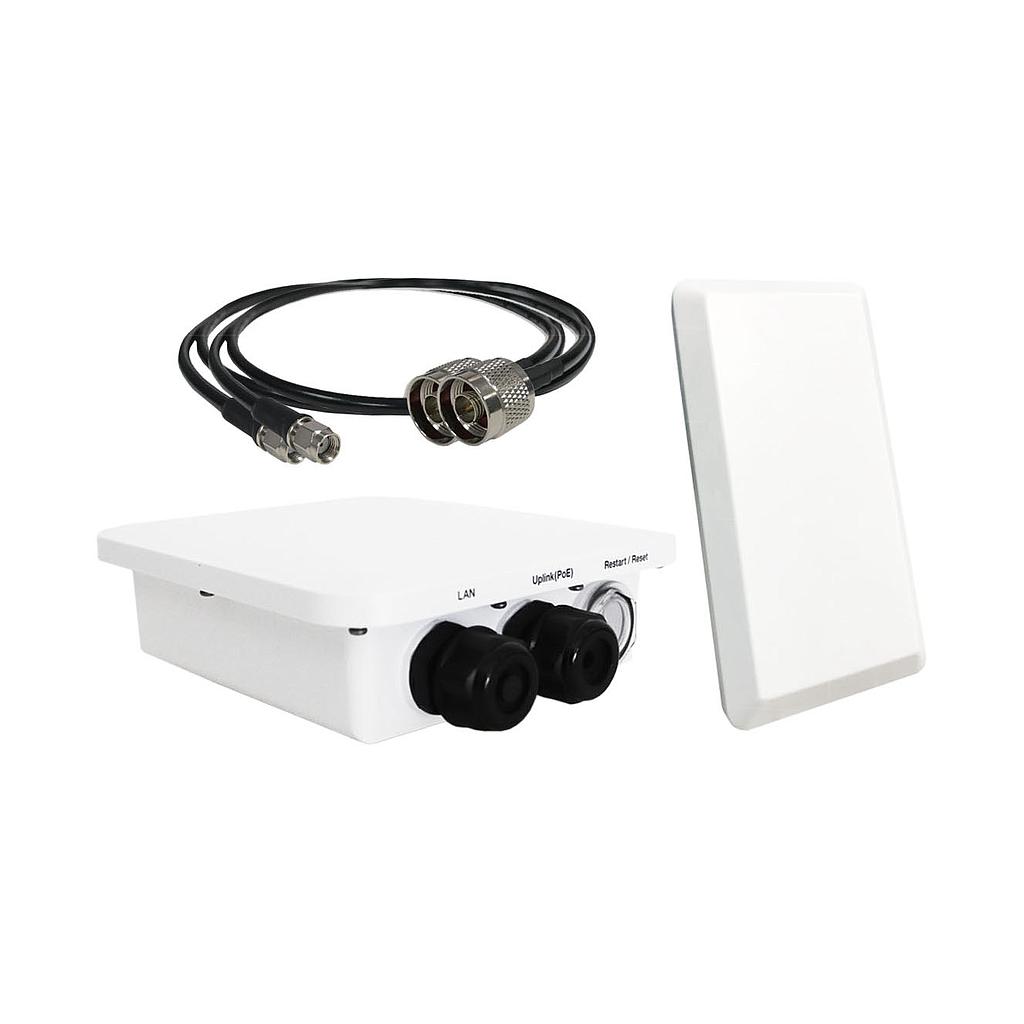

DUAC201 with Panel Antenna and Low loss Cable

DUAC201 with Panel Antenna and Low loss Cable

23,700.00 Php 23700.0 PHP

23,700.00 Php

Add to Cart

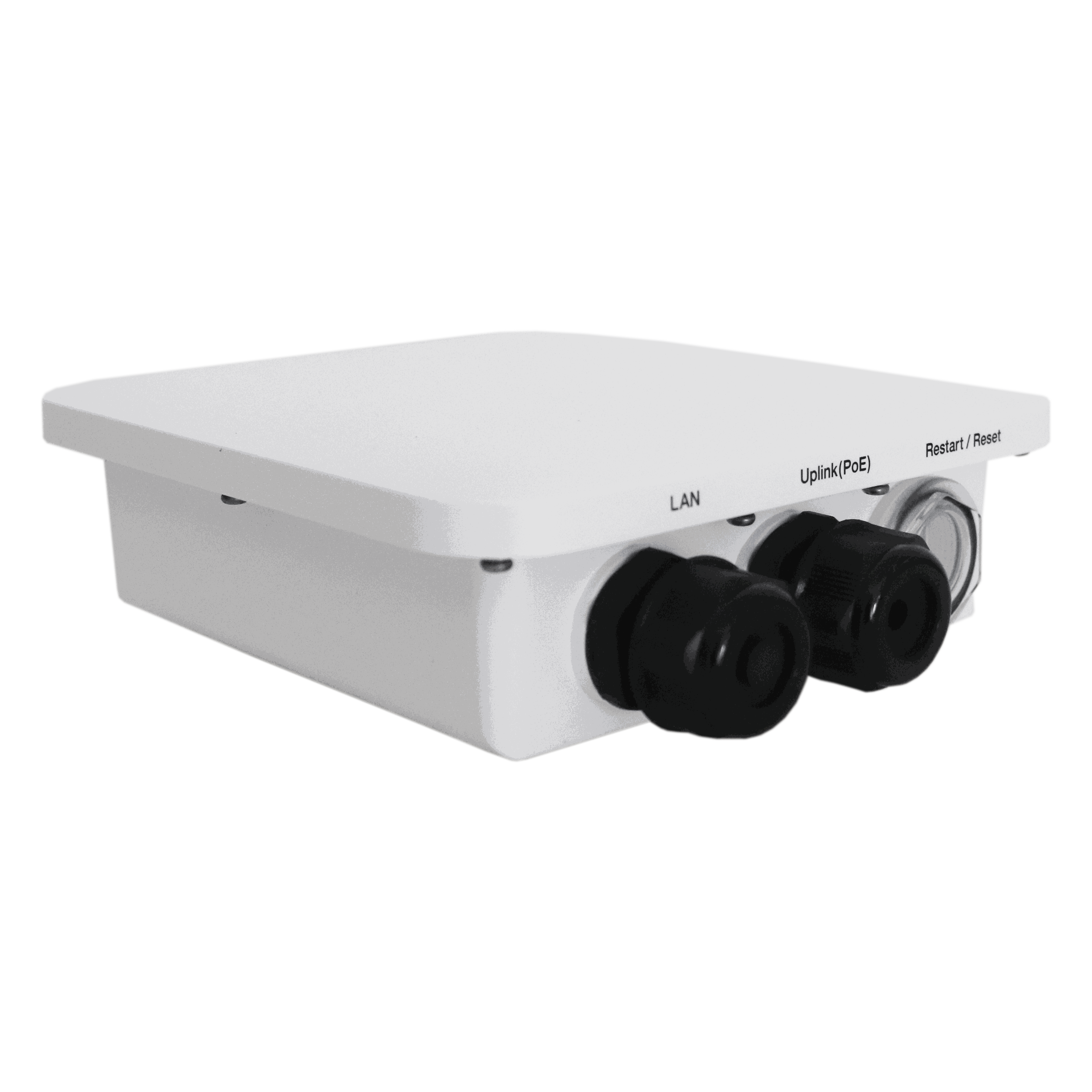

        The E-NetData DUAC201 is a concurrent dual-band 802.11ac outdoor access point ideal for providing outdoor Wi-Fi coverage and network access to equipment in remote locations such as IP video surveillance cameras. Featuring two 2x2 radios, the DUAC201 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively.

        On top of that, with the standalone per user and per WDS bandwidth management features, DUAC201 can manage the user and WDS bandwidth more precisely and efficiently.

Wi-Fi

Concurrent Dual-Band 2.4 & 5 GHz


Supporting up to 1.2 Gbps data rate

Support up to 32 ESSIDs.

Enterprise-grade Wireless Security

PHYSICAL

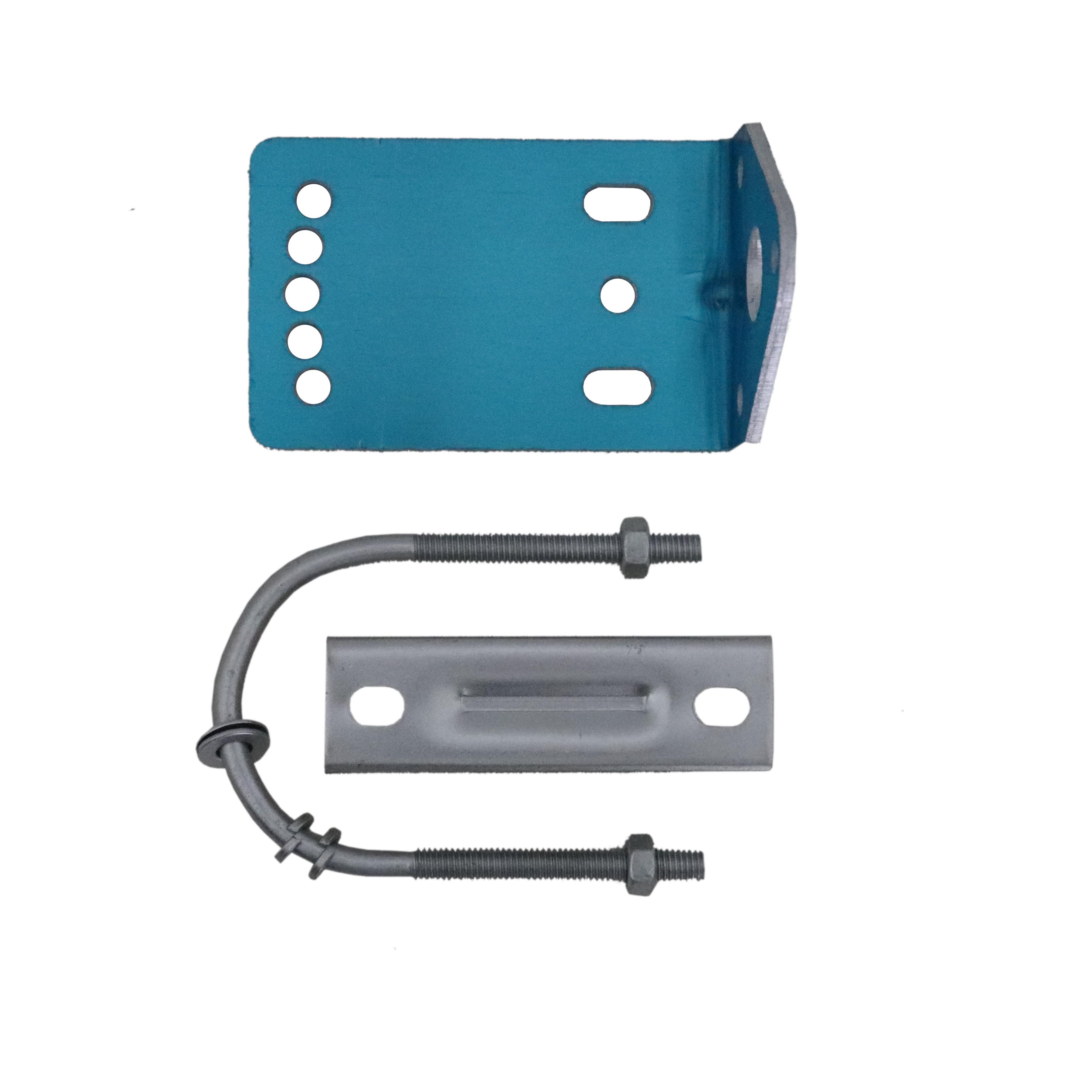

Simple installation with pole/wall mount

Compact IP68 enclosure

802.3at PoE Uplink Port

External Antennas with SMA connector (5G)

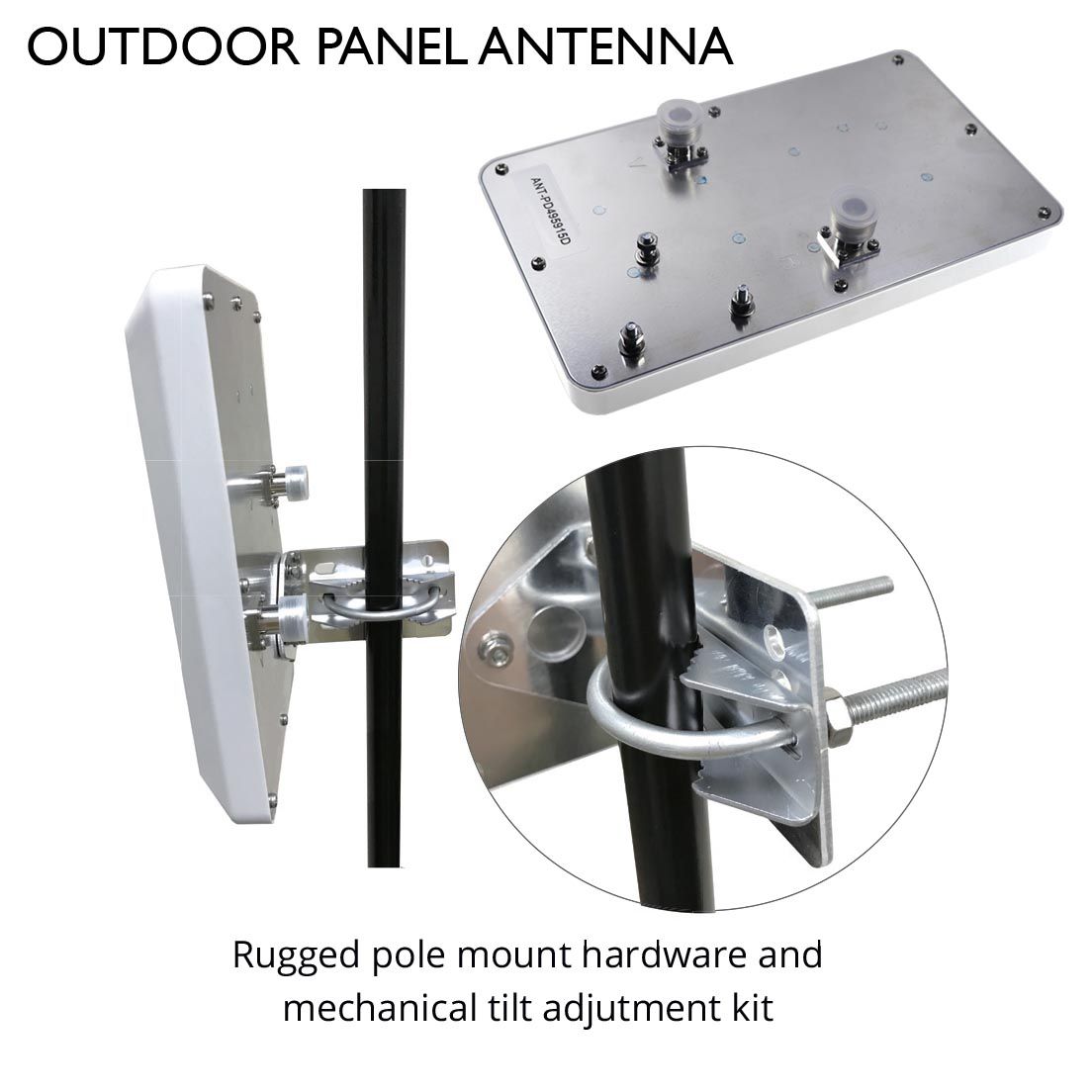

DUAC201

 with Panel Antenna

 · Is a dual-band 802.11ac outdoor access point ideal for providing outdoor Wi-Fi coverage, Point-to-Point and Point-to-multi network.

· DUAC201 is compliant with the latest industrial wireless security standards such as 802.1X and WPA and WPA

· Cost-effective, High-power, Rugged IP68 rating

· Dual-polarization to avoid interference

· DUAC201 also features multiple ESSIDs with VLAN tags and multiple Virtual Aps.

· Standalone per user and per WDS bandwidth management features.

· Features multiple ESSIDs with VLAN tags and multiple Virtual APs

· 30° beamwidth, up to 1KM in range.

· 802.11 a/c band 4.9-5.845 GHz global compatibility.

· Up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands.

· Up to 23 dBm in 2.4 GHz and Up to 22 dBm in 5 GHz.

· Featuring 2x2 MIMO high-throughput & diversity

· Powered by 802.3at .

_____________________________________________________________________________________________________________________________

Specification



Radio


Standards

◈ 802.11 a/b/g/n/ac

◈ Concurrent dual-band 2.4 & 5 GHz



Supported Data Rates

◈ 802.11ac: 6.5 – 173.4 Mbps (20 MHz)

◈ 802.11ac: 13.5 – 400 Mbps (40 MHz)

◈ 802.11ac: 29.3 – 866.6 Mbps (80 MHz)

Radio Chains

◈ 2 x 2

Spatial Streams

◈ 2


RF Output Power*1

◈ 2.4 GHz: Up to 23 dBm*

◈ 5 GHz: Up to 22 dBm*

Channelization

◈      20MHz, 40MHz, 80MHz


Frequency Band

◈  2.412–2.472GHz

◈  5.180–5.825GHz


Operating Channels

◈ 2.4 GHz: 1 – 11 (US), 1 – 13 (Europe), 1 – 13 (Japan)

◈ 5 GHz*3: 36 – 165 (US), 36 – 140 (Europe), 36 – 140 (Japan)

ESSIDs

◈ Up to 16 per radio (32 total)

Certifications

◈ FCC (United States)

 ELECTRICAL CHARACTERISTICS

Frequency Range

DC~6GHz

VSWR

≦ 2.0

Impedance

50 Ohm

Insertion Loss

≧ -2.0 dB

Voltage (breakdown)

> 500V

Insulation Resistance

≧ 500M Ohm

 MECHANICAL CHARACTERISTICS

Pull Test of Connector

≧ 5kg

Mating Cycles

> 500

 PHYSICAL

Length

1M

Weight

67g

Connector (two sides)

N male, RP-SMA male

Operation Temperature

- 40°C to 85°C

Storage Temperature

- 40°C to 80°C

 Coaxial Low Loss Cable

ELECTRICAL CHARACTERISTICS


Frequency Range

4.9 - 5.875 GHz

Gain

15 dBi

Polarization

Dual Linear, V+H
