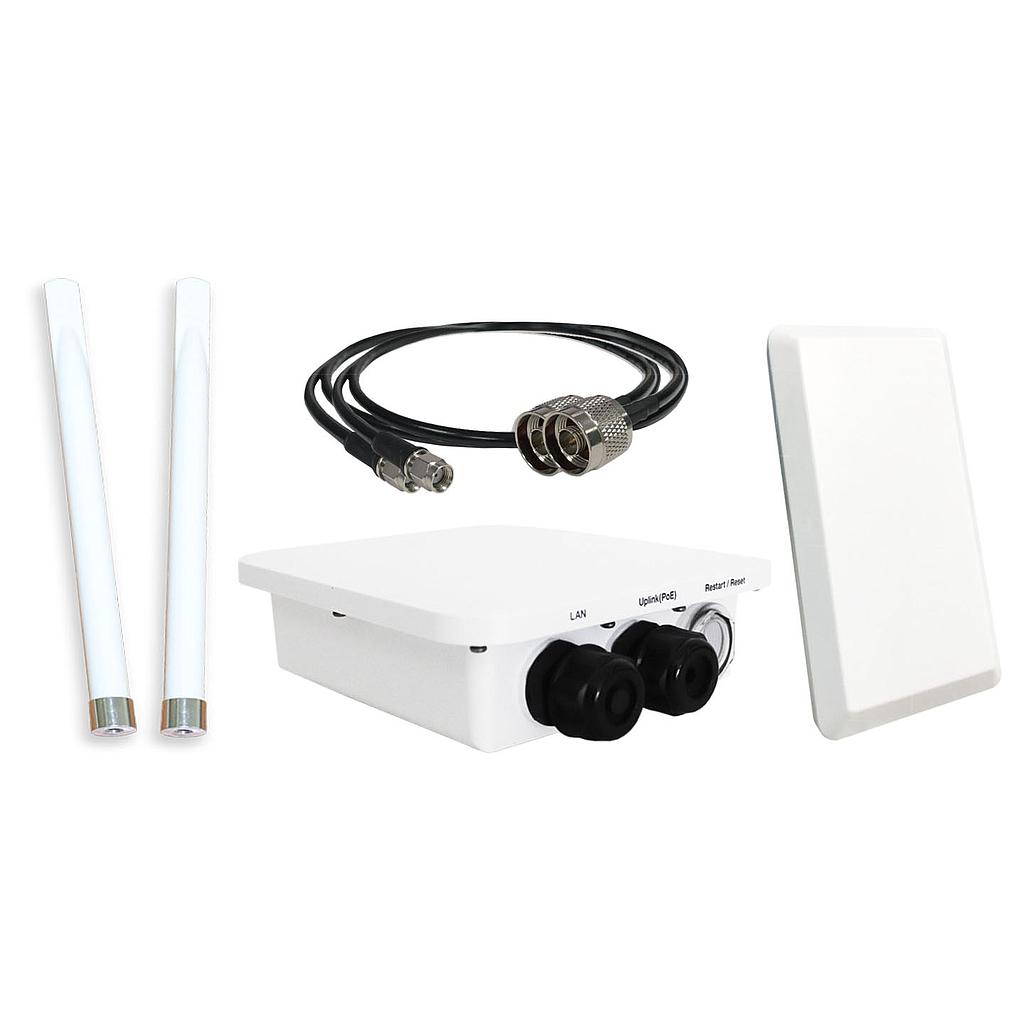

DUAC201 with Panel Antenna, Low loss cable and Omni Antenna

DUAC201 with Panel Antenna, Low loss cable and Omni Antenna

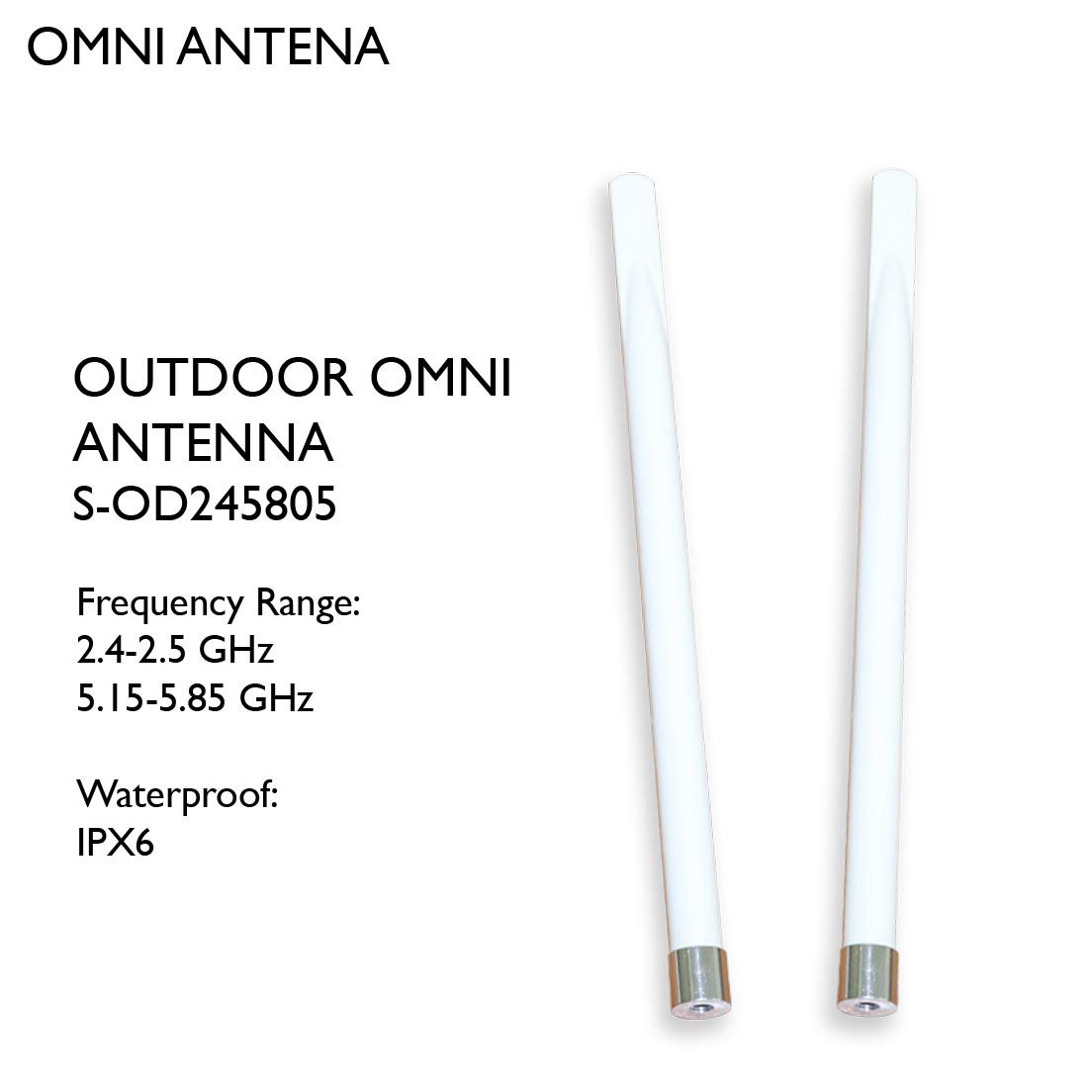

Dual-band Dual-radios Access Point with 5Ghz 15dBi Dual-polarized Panel Antenna, two Low Loss and two 5Ghz/2.4Ghz Dual-band 5dBi Omni Antenna

Odoo image and text block

Key Features:

1.    Dual-radios Outdoor AP IP68 rating compact enclosure
2.    Current dual-band 802.11ac, 2x2 MIMO, up to 1.2Gbps data rates
3.    Gigabit port with 802.3at PoE uplink and gigabit LAN ports
4.    Operating modes: AP, WDS, Universal Repeater
5.    Fast Layer2/Layer3 roaming
6.    Enterprise-grade wireless security
7.    32 ESSIDs with 802.1Q VLAN
8.    Per User and WDS Link bandwidth management
9.    2 x SMA-type connectors for 5Ghz external antennas
10.  Built-in 2 x 3dBi 2.4Ghz Omni chip antenna
11.  Layer-2 Wireless Firewall
12.  Ideal last-mile solution for ISP(WISPs) outdoor deployment

  The Complete Wireless Last-mile Solution Package for ISP/WISP/Cable Operator

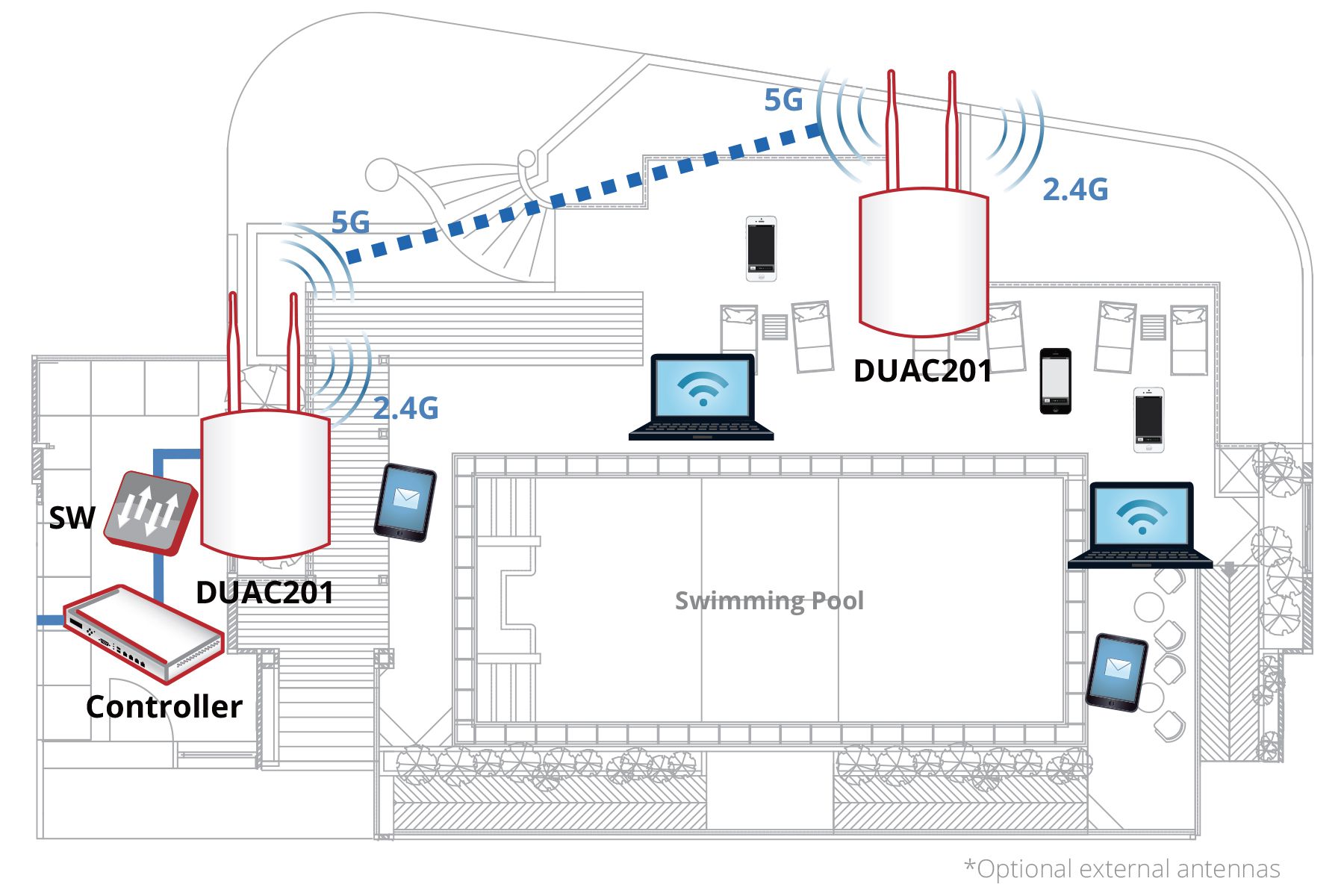

        The E-NetData DUAC201 is a concurrent dual-band 802.11ac outdoor access point ideal for providing outdoor Wi-Fi coverage and network access to equipment in remote locations such as IP video surveillance cameras. Featuring two 2x2 radios, the DUAC201 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively.

        On top of that, with the standalone per user and per WDS bandwidth management features, DUAC201 can manage the user and WDS bandwidth more precisely and efficiently.

Wi-Fi

Concurrent Dual-Band 2.4 & 5 GHz

Supporting up to 1.2 Gbps data rate

Support up to 32 ESSIDs.

Enterprise-grade Wireless Security

PHYSICAL

 Simple installation with pole/wall mount

 Compact IP68 enclosure

 802.3at PoE Uplink Port

External Antennas with SMA connector (5G)t

            SPECIFICATIONS

             PHYSICAL

            Power• PoE. 802.3 at comliant or 42.5 - 57V / 0.4A
            Dimensions• 16.3 cm (L) x 16.3 cm (W) x 4.7 cm (H)
            Weight• 0.35 kg (0.77 lbs)
            Interfaces• Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3at PoE
            • LAN: 1 x 10/100/1000Base-T Ethernet, Auto MDIX
            LED Indicator• 5G/2.4G/Power
            Buttons• Restart/Reset
            Environmental Conditions• Operating Temperature: -10C (14F) to 50C (122F)
            Power Consumption• 16 W max
            Antenna• Gain: 3 dBi (2.4 GHz), N/A dBi (GHz)
            Mounting
            • Wall/Pole Mount (Hose Clamp Included)

            Wi-Fi

            Standards• 802.11 a/b/g/n/ac
            • Concurren dual-band 2.4 & 5 GHz



            Supported Data Rates
            • 802.11b: 1, 2, 5.5, 11 Mbps
            • 802.11 a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
            • 802.11n: 6.5 - 144 Mbps (20 MHz)
            • 802.11n: 13.5 - 300 Mbps (40 MHz)
            • 802.11ac: 6.5 - 173.4 Mbps (20 MHz)
            • 802.11ac: 13.5 - 400 Mbps (40 MHz)
            • 802.11ac: 29.3 - 866.6 Mbps (80 MHz)
            Radio Chains• 2 x 2
            Spartial Streams• 2
            RF Output Power• 2.4 GHz: Up to 23 dBm*2• 5 GHz: Up to 22 dBm*2
            Channelization• 20 MHz• 40 MHz• 80 MHz
            Frequency Band• 2.412 - 2.472 GHz• 5.180 - 5.825 GHz
            Operating Channels• 2.4 GHz: 1-11 (US), 1 - 13 (Europe), 1 - 13 (Japan)
            • 5 GHz*3: 36-165 (US), 36-140 (Europe), 36-140 (Japan)
            ESSIDs• Up to 16 per radio (32 total)
            Certifications• FCC (United States)
            Odoo image and text block

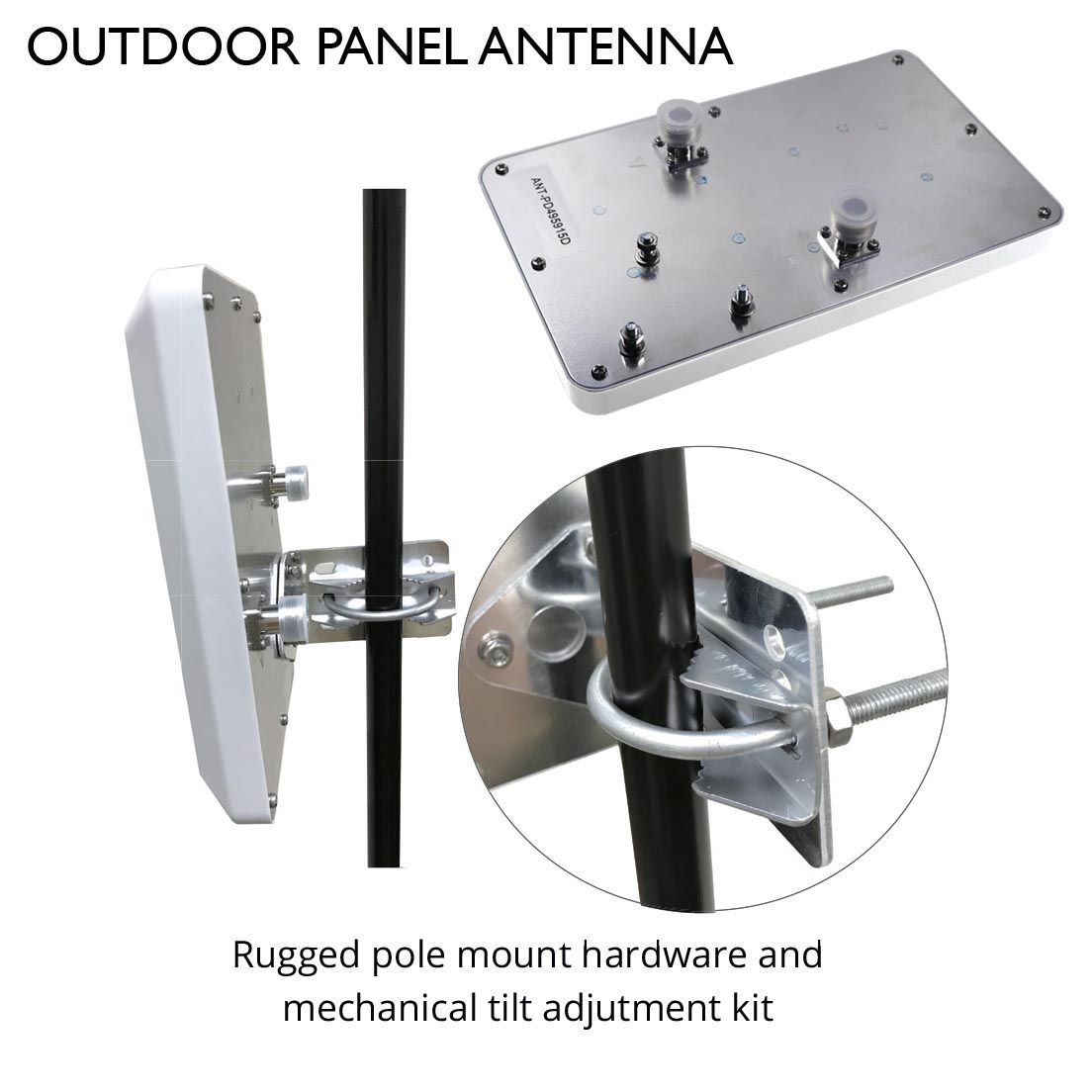

            FEATURES:

            • 802.11 a/n band 4.9-5.845 GHz global compatibility
            • 2x2 MIMO high-throughput & diversity at 15dBi gain performance
            • Dual-polarization to avoid interference
            • Suit for bandwidth BWA (Broadband Wireless Access)
            or Wireless ISP P2P coverage

            SPECIFICATIONS

             ELECTRICAL CHARACTERISTICS

            Frequency Range

               • 4.9 - 5.875 GHz

              Gain

              • 15 dBi

              Polarization

              • Dual Linear, V+H

              VSWR

              • 1.6:1 max.

              Max. Power Input

              • 10 W

              Impedance

              • 50 Ohm

              BW/Azimuth

              • 30° (both ports)

              BW/Elevation

              • 30° (both ports)

              Isolation

              • >20 dB typ.

              Connector

              • 2 x N Jack (female)
